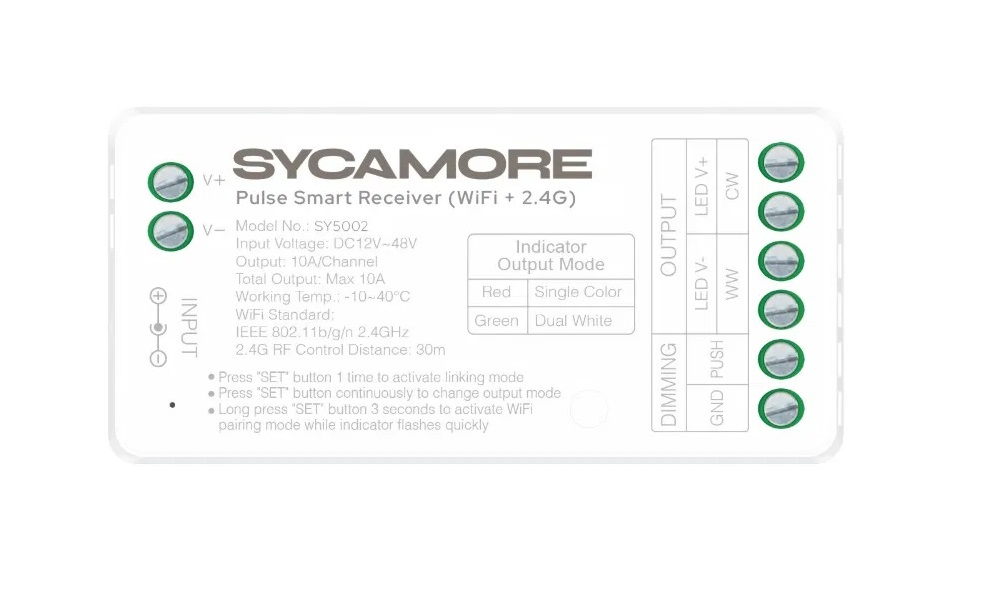

Our Pulse Smart Receiver is a 2-in-1 controller, which can control both single colour LED Lighting (on and off, plus dimming), and CCT Tunable LED Lighting (on and off, CCT colour changing, plus dimming).
The receiver also supports biological rhythm, music rhythm & push dimming.
Compatible with the TUYA Smart App. Enables control of all connected lighting via a smart phone or tablet.
Also compatible with voice control assistants such as Alexa or Google assistant - control lighting with simple commands, such as "Alexa, turn on kitchen lights!" (TUYA smart app required).
One receiver supports a maximum of 12 remotes (control distance 30m).
Compatible CCT LED strips and remote controls are listed at the bottom of this page.
| Category | Description |
|---|
| Input Voltage | DC12~48V |
|---|
| Output Power | 120W~480W |
|---|
| Output Current | Max 10A |
|---|
| Output Type | Constant Voltage |
|---|
| Protocol: | WiFi+2.4GHz RF |
|---|
| Dimming Range | 0.1%-100% |
|---|
| RF Remote Control Distance | 30m |
|---|
| Length x Width | 74.5 mm x 36 mm |
|---|
| Depth | 17 mm |
|---|
This product has a 2 year warranty.
