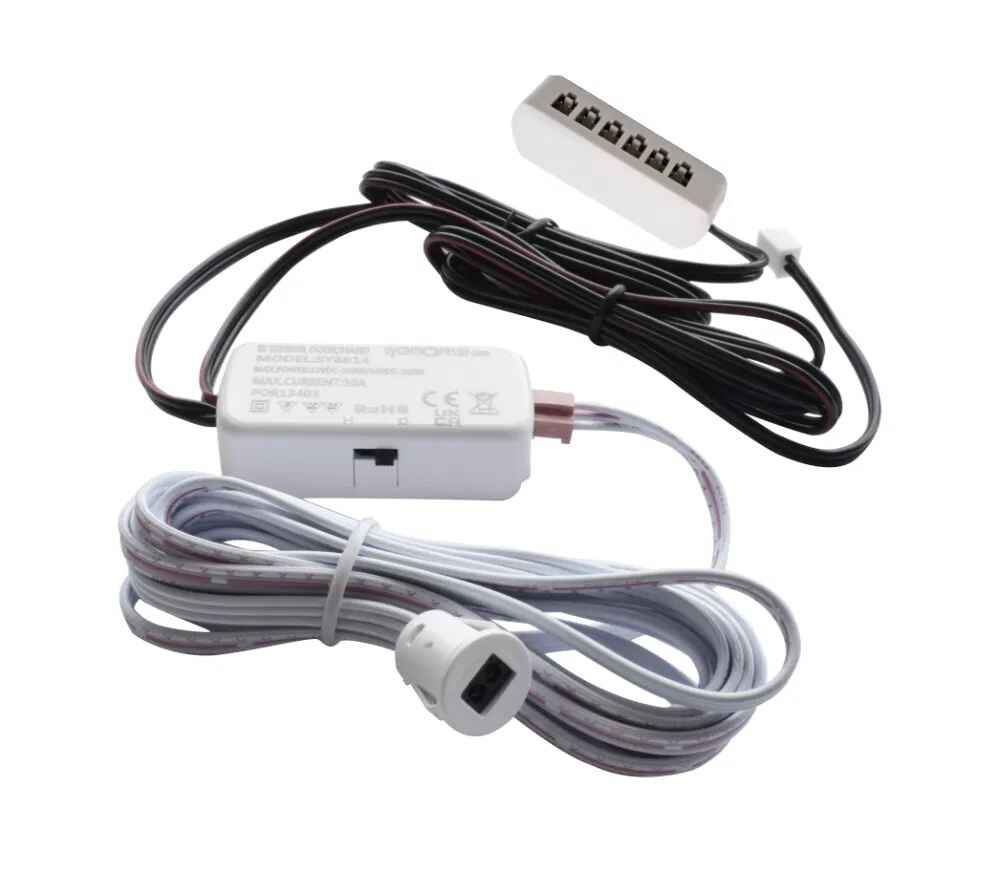

NOTE: IMAGE SHOWS SINGLE DOOR SENSOR HEAD. DOUBLE DOOR FEATURES TWO SENSOR HEADS.

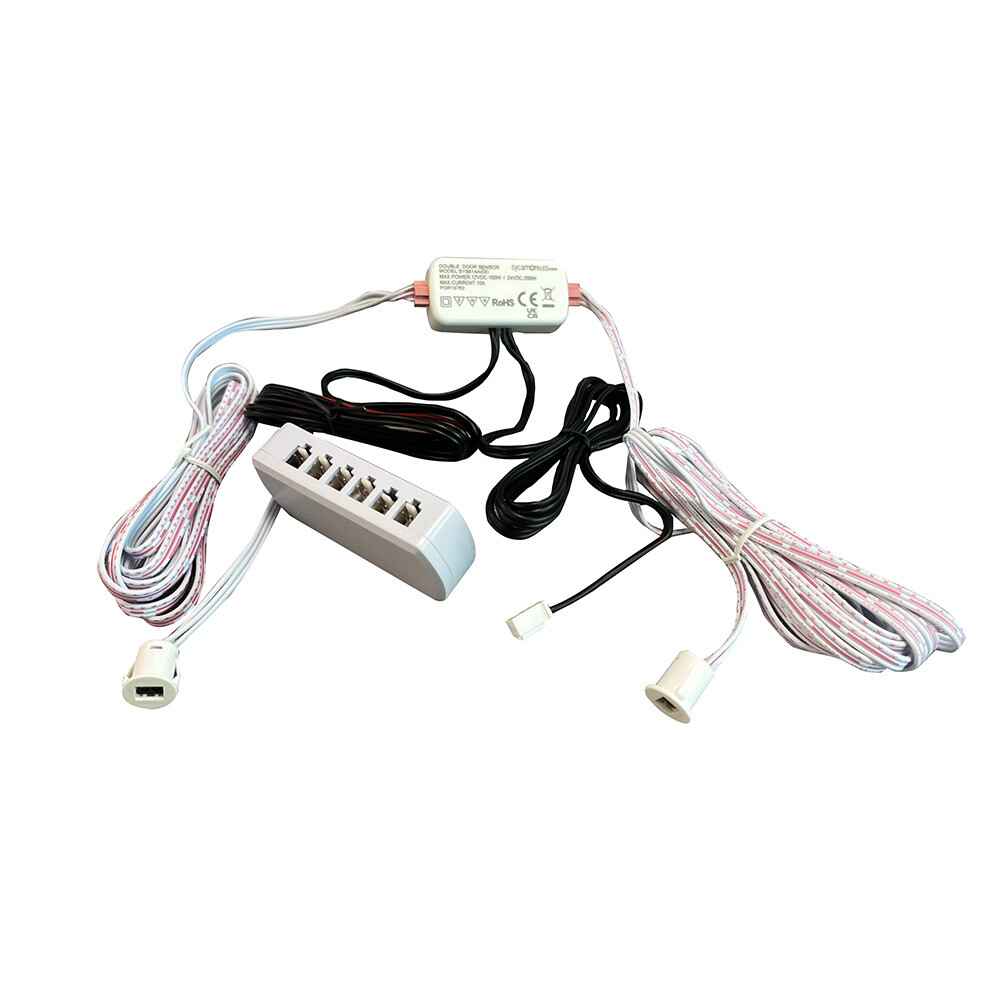

This double door sensor switch offers a discreet surface mounted or recessed solution for automatic switching of 12/24Vdc LED lighting.
This dual purpose sensor can be used as a door sensor or a swipe sensor by choosing your desired mode using the simple switch on the side of the sensor.
When in swipe mode, the sensor will turn connected lights on and off when a hand is swiped in front of the sensor.
When in door sensor mode, the sensor will turn connected lights on or off when a door is opened and closed.

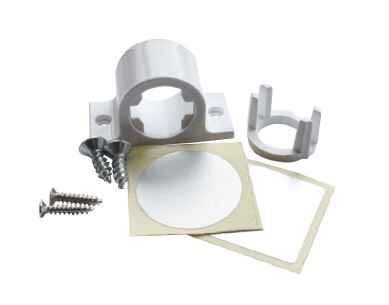

The unit can be mounted recessed or surface with the accessories supplied.
Category | Description |
---|
Power Supply | 12/24 Vdc |
---|
Max Current | 10 A |
---|
Max Wattage | 12Vdc - 100W 24Vdc - 200W |
---|
Mounting | Recessed or Surface |
---|
Sensor Range | Up to 7 cm |
---|
Cable Length | 2 metre sensor cable |
---|
Input Cable | 1 metre with connector |
---|
Output Cable | 1 metre with connector |
---|
Warranty
This product has a 3 year warranty.
