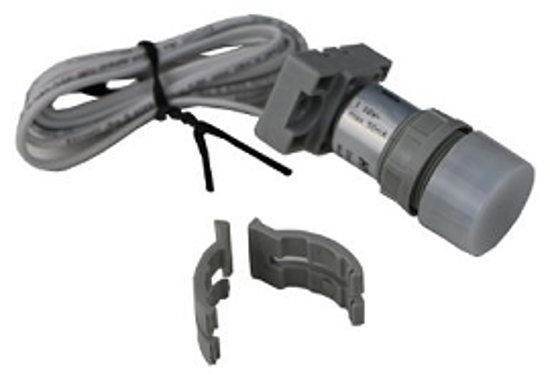

High Bay Daylight Sensor HLBDS

Manufacturer: Red Arrow
Manufacturer part number: HLBDS

The Daylight Sensor can read and measure the surrounding light, converting the amount of light to 1-10V electronic signal output. A potentiometer is employed for end users to set the brightness level, so that the daylight sensor can read and measure the available natural daylight against the target value, calculating how much artificial light is needed.

This demand is then converted to 1-10V signal, to be sent to the 1-10V dimmable ballast or LED driver, which will then adjust the light output relative to the available ambient light.

ManufacturerRed Arrow
Guarantee5 Years
IP RatingIP20
Life Expectancy50,000 hours
Working Temperature-35 - +70 °C
Cable Length0.8 m
Dimensions75mm (L) x 33mm (W) x 25mm (D)
Against Natural Light10-100%
Maximum Permitted Cable Length50m
Sensor Angle90°
Recommended PositioningFor optimum benefit, the sensor should be directed towards the ambient light source (subject to site conditions and location)
Extra InfoCan be used individually, with a microwave sensor or with a 1-10V microwave sensor
Switches off automatically
